HKS: Intercooler (core only) Honda FL5

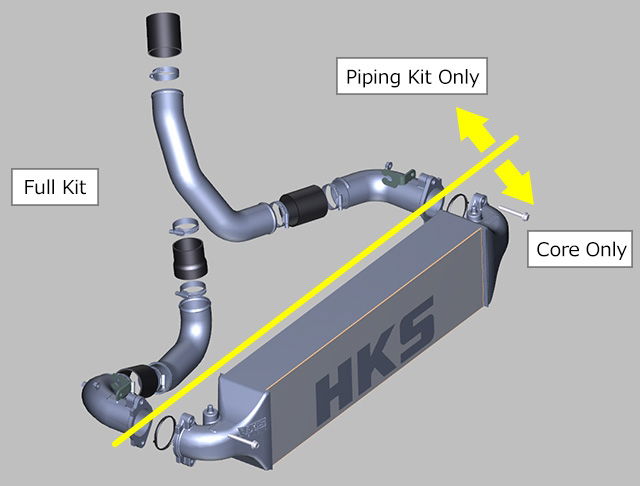

Intercooler Core
A huge 22.4% increase in core’s area leads to immense improvement in cooling. The OEM core does not provide sufficient cooling capacity when boosting up, with increased core capacity it will be compatible with everything from boosting up to turbo upgrade. The core is designed to be also installed with OEM piping

- Core size: 695×178×100
- Core specs: 10 Fins, 9 Tubes
- Tank: Aluminum cast

Performance Data
- Power: 245kW(333 PS) / 6500 rpm
- Temp: I/C outlet 30.3℃ (7000 rpm)
- Cooling Efficiency: 88% (7000 rpm)
- Pressure loss reduction: 12.4kPa (7000rpm)

Notes

To install the intercooler ASSY, it is necessary to modify the air guide inside the bumper and relocate the outside air temperature sensor. No modification of the reinforcement is required.

Stock Images Used. Actual Product May Vary.
